Portable dataflows with Ibis and Hamilton
Part 1: Feature engineering
This post showcases how Ibis and Hamilton enable dataflows that span execution over SQL and Python. Ibis is a portable dataframe library to write procedural data transformations in Python and be able to execute them directly on various SQL backends (DuckDB, Snowflake, Postgres, Flink, see full list). Hamilton provides a declarative way to define testable, modular, self-documenting dataflows, that encode lineage and metadata.
In this post, you’ll learn how to write modular feature transformations that work both in dev and prod, provide lineage, and are reusable. In Part 2, we’ll discuss machine learning with IbisML and data quality checks/integrations with Hamilton.
Let’s first introduce Ibis before exploring how it pairs with Hamilton.
What is Ibis?
Even though the SQL language was introduced in the 1970s, it isn’t a monolith and modern backends each have their own “flavor” or dialect. This includes special operations, rules for quotation marks, and standards for name casing. Therefore, when developing SQL on a local engine, one has to be aware of all the intricacies of the development backend and the production backend to avoid unexpected errors.
Ibis tackles this problem by having its own intermediate representation that allows you to write data transformations once and compile them to various dialects. It supports local engines (pandas, polars, Dask, DuckDB), production data warehouses (BigQuery, Snowflake), databases (Postgres), and even streaming engines (Flink, RisingWave). Those are collectively called backends.
Standalone Ibis
Here’s an Ibis code snippet to load data from a CSV, compute features, select columns, and filter rows, illustrating typical feature engineering operations.
Reading the code, you’ll notice that:
We use “expression chaining”, meaning there’s a series of
.method()attached one after another.
The variable
ibis._is a special character referring to the current expression e.g.,ibis._.petaccesses the column “pet” of the current table.The table method
.mutate(col1=, col2=, ...)assigns new columns or overwrites existing ones.
import ibis
feature_set = (
ibis.read_parquet(sources="absenteeism", table_name="absenteeism.parquet")
.rename("snake_case")
.mutate( # allows us to define new columns
has_children=ibis.ifelse(ibis._.son > 0, True, False),
has_pet=ibis.ifelse(ibis._.pet > 0, True, False),
is_summer_brazil(ibis._.month_of_absence.isin([1, 2, 12)]),
).select(
"id", "has_children", "has_pet", "is_summer_brazil",
"service_time", "seasons", "disciplinary_failure",
"absenteeism_time_in_hours"
)
)Challenge 1 – Maintain and test large data transformations
Ibis has an SQL-like syntax and supports chaining operations, allowing for powerful queries in a few lines of code. Conversely, there’s a risk of sprawling complexity as expressions as statements are appended, making them harder to test and debug. Preventing this issue requires a lot of upfront discipline and refactoring.
Challenge 2 – Orchestrate Ibis code in production
Ibis alleviates a major pain point by enabling data transformations to work across backends. However, moving from dev to prod still requires some code changes such as changing backend connectors, swapping unsupported operators, adding some orchestration and logging execution, wanting to reuse prior code, etc. This is outside the scope of the Ibis project and is expected to be enabled by other means, which usually means bespoke constructs that turn into technical debt.
What is Hamilton?
Hamilton is a general-purpose framework to write dataflows using regular Python functions. At the core, each function defines a transformation and its parameters indicates its dependencies. Hamilton automatically connects individual functions into a Directed Acyclic Graph (DAG) that can be executed, visualized, optimized, and reported on.
How Hamilton complements Ibis
Hamilton was initially developed to structure pandas code for a large catalog of features, and has since been adopted by multiple organizations since, and expanded to cover any python object type (Polars, PySpark, ML Models, Numpy, you custom type, etc). Its syntax encourages users to chunk code into meaningful and reusable components, which facilitates documentation, unit testing, code reviews, and improves iteration speed, and the dev to production process. These benefits directly translate to organizing Ibis code.
Solution 1 – Structure your Ibis code with Hamilton
Now, we’ll refactor the above Ibis code to use Hamilton. Users have the flexibility to chunk code (i.e. what the contents of a function is), at the table or the column-level depending on the needed granularity. This modularity is particularly beneficial to Ibis because:
Well-scoped functions with type annotations and docstring are easier to understand for new Ibis users and facilitate onboarding.
Unit testing and data validation becomes easier with smaller expressions. These checks become more important when working across backends since the operation coverage varies and bugs may arise.
Table-level dataflow
Table-level operations might feel most familiar to SQL and Spark users. Also, Ibis + Hamilton is reminiscent of dbt for the Python ecosystem.
Working with tables is very efficient when your number of columns/features is limited, and you don’t need full column level lineage. As you want to reuse components, you can progressively breakdown “table-level code” in to “column-level code”.
The initial Ibis code is now 3 functions with type annotations and docstrings. We have a clear sense of the expected external outputs and we could implement schema checks between functions.
import ibis
import ibis.expr.types as ir
def raw_table(raw_data_path: str) -> ir.Table:
"""Load CSV from `raw_data_path` into a Table expression
and format column names to snakecase
"""
return (
ibis.read_csv(sources=raw_data_path, table_name="absenteism")
.rename("snake_case")
)
def feature_table(raw_table: ir.Table) -> ir.Table:
"""Add to `raw_table` the feature columns `has_children`
`has_pet`, and `is_summer_brazil`
"""
return raw_table.mutate(
has_children=(ibis.ifelse(ibis._.son > 0, True, False)),
has_pet=ibis.ifelse(ibis._.pet > 0, True, False),
is_summer_brazil=ibis._.month_of_absence.isin([1, 2, 12]),
)
def feature_set(
feature_table: ir.Table,
feature_selection: list[str],
condition: Optional[ibis.common.deferred.Deferred] = None,
) -> ir.Table:
"""Select feature columns and filter rows"""
return feature_table[feature_selection].filter(condition)
Column-level dataflow
Hamilton was initially built to expose and manage column-level operations, which is most common in dataframe libraries (pandas, Dask, polars).
Column-level code leads to fully-reusable feature definitions and a highly granular level of lineage. Notably, this allows one to trace sensitive data and evaluate downstream impacts of code changes. However, it is more verbose to get started with, but remember that code is read more often than written.

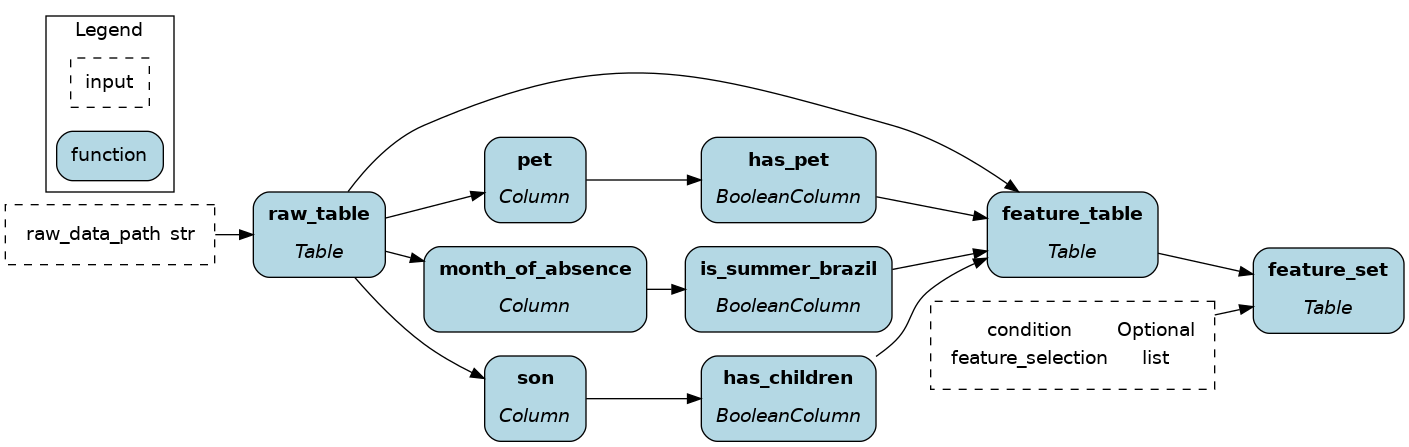

Now, the raw_table is loaded and the columns son, pet, and month_of_absence are extracted to engineer new features. After transformations, features are joined with raw_table to create feature_table.
import ibis
import ibis.expr.types as ir
from hamilton.function_modifiers import extract_columns
from hamilton.plugins import ibis_extensions
# extract specific columns from the table
@extract_columns("son", "pet", "month_of_absence")
def raw_table(raw_data_path: str) -> ir.Table:
"""Load the CSV found at `raw_data_path` into a Table expression
and format columns to snakecase
"""
return (
ibis.read_csv(sources=raw_data_path, table_name="absenteism")
.rename("snake_case")
)
# accesses a single column from `raw_table`
def has_children(son: ir.Column) -> ir.BooleanColumn:
"""True if someone has any children"""
return ibis.ifelse(son > 0, True, False)
# narrows the return type from `ir.Column` to `ir.BooleanColumn`
def has_pet(pet: ir.Column) -> ir.BooleanColumn:
"""True if someone has any pets"""
return ibis.ifelse(pet > 0, True, False).cast(bool)
# typing and docstring provides business context to features
def is_summer_brazil(month_of_absence: ir.Column) -> ir.BooleanColumn:
"""True if it is summer in Brazil during this month
People in the northern hemisphere are likely to take vacations
to warm places when it's cold locally
"""
return month_of_absence.isin([1, 2, 12])
def feature_table(
raw_table: ir.Table,
has_children: ir.BooleanColumn,
has_pet: ir.BooleanColumn,
is_summer_brazil: ir.BooleanColumn,
) -> ir.Table:
"""Join computed features to the `raw_data` table"""
return raw_table.mutate(
has_children=has_children,
has_pet=has_pet,
is_summer_brazil=is_summer_brazil,
)
def feature_set(
feature_table: ir.Table,
feature_selection: list[str],
condition: Optional[ibis.common.deferred.Deferred] = None,
) -> ir.Table:
"""Select feature columns and filter rows"""
return feature_table[feature_selection].filter(condition)
Solution 2 – Orchestrate Ibis anywhere
Hamilton is an ideal way to orchestrate Ibis code because it has a very small dependency footprint and will run anywhere Python does (script, notebook, FastAPI, pyodide, etc.) In fact, the Hamilton library only has four dependencies. You don’t need “framework code” to get started, just plain Python functions. When moving to production, Hamilton has all the necessary features to complement Ibis such as swapping components, configurations, and lifecycle hooks for logging, alerting, and telemetry.
A simple usage pattern of Hamilton + Ibis is to use the @config.when function modifier. In the following example, we have alternative implementations for the backend connection, which will be used for computing and storing results. When running your code, specify in your config backend="duckdb" or backend="bigquery" to swap between the two.
# ibis_dataflow.py
import ibis
import ibis.expr.types as ir
from hamilton.function_modifiers import config
# ... entire dataflow definition
@config.when(backend="duckdb")
def backend_connection__duckdb(
connection_string: str
) -> ibis.backends.BaseBackend:
"""Connect to DuckDB backend"""
return ibis.duckdb.connect(connection_string)
@config.when(backend="bigquery")
def backend_connection__bigquery(
project_id: str,
dataset_id: str,
) -> ibis.backends.BaseBackend:
"""Connect to BigQuery backend
Install dependencies via `pip install ibis-framework[bigquery]`
"""
return ibis.bigquery.connect(
project_id=project_id,
dataset_id=dataset_id,
)
def insert_results(
backend_connection: ibis.backends.BaseBackend,
result_table: ir.Table,
table_name: str
):
"""Execute expression and insert results"""
backend_connection.insert(
table_name=table_name,P
obj=result_table
)Subscribe to be notified about part 2 on machine learning training
How Ibis complements Hamilton
Performance boost
Leveraging DuckDB as the default backend, Hamilton users migrating to Ibis should immediately find performance improvements both for local dev and production. In addition, the portability of Ibis has the potential to greatly reduce development time.
Atomic data transformation documentation
Hamilton can directly produce a dataflow visualization from code, helping with project documentation. Ibis pushes this one step further by providing a detailed view of the query plan and schemas. See this Ibis visualization for the column-level Hamilton dataflow defined above. It includes all renaming, type casting, and transformations steps (Please open the image in a new tab and zoom in 🔎).
Working across rows with user-defined functions (UDFs)
Hamilton and most backends are designed to work primarily on tables and columns, but sometimes you’d like to operate over a row (think of pd.DataFrame.apply()). However, pivoting tables is costly and manually iterating over rows to collect values and create a new column is quickly inconvenient. By using scalar user-defined functions (UDFs), Ibis makes it possible to execute arbitrary Python code on rows directly* on the backend.
❓ Using
@ibis.udf.scalar.pythoncreates a non-vectorized function that iterates row-by-row. See the docs to use backend-specific UDFs with@ibis.udf.scalar.builtinand create vectorized scalar UDFs.
For instance, you could embed rows of a text column using an LLM API using your existing data warehouse infrastructure.
import ibis
import ibis.expr.types as ir
def documents(path: str) -> ir.Table:
"""load text documents from file"""
return ibis.read_parquet(sources=path, table_name="documents")
# the function name would need to start
# with `_` to avoid being added as a node
@ibis.udf.scalar.python
def _generate_summary(author: str, text: str, prompt_template: str) -> str:
"""UDF Function to call the OpenAI API line by line"""
prompt = prompt_template.format(author=author, text=text)
client = openai.OpenAI(...)
try:
response = client.chat.completions.create(...)
return_value = response.choices[0].message.content
except Exception:
return_value = ""
return return_value
def prompt_template() -> str:
return """summarize the following text from {author} and add
contextual notes based on it biography and other written work
TEXT
{text}
"""
def summaries(documents: ir.Table, prompt_template: str) -> ir.Table
"""Compute the UDF against the family"""
return documents.mutate(
summary=_generated_summary(
_.author,
_.text,
prompt_template=prompt_template
)
)
Ibis + Hamilton – a natural pairing
What works in dev works in prod: Ibis and Hamilton allows you to write and structure code data transformations that are portable across backends for small and big data alike. The two being lightweight libraries, installing dependencies on remote workers is fast and you’re unlikely to ever encounter dependency conflicts.
Maintainable and testable code: Modular functions facilitates writing high quality code and promotes reusability, compounding your engineering efforts. It becomes easier for new users to contribute to a dataflow and pull requests are merged faster.
Greater visibility: With Hamilton and Ibis, you have incredible visualizations directly derived from your code. This is a superpower for documentation, allowing users to make sense of a dataflow, and also reason about changes.
Next steps
Part 2 of this blog will cover machine learning using IbisML and data quality checks with Hamilton integrations.
If you’re curious, take a look at the IbisML roadmap. We hope to help orchestrate these code components
Ibis is gaining traction in the data space with an upcoming pandera integration (data quality) and interest from Feast developers (feature store), and both have nice Hamilton integrations/examples already!
